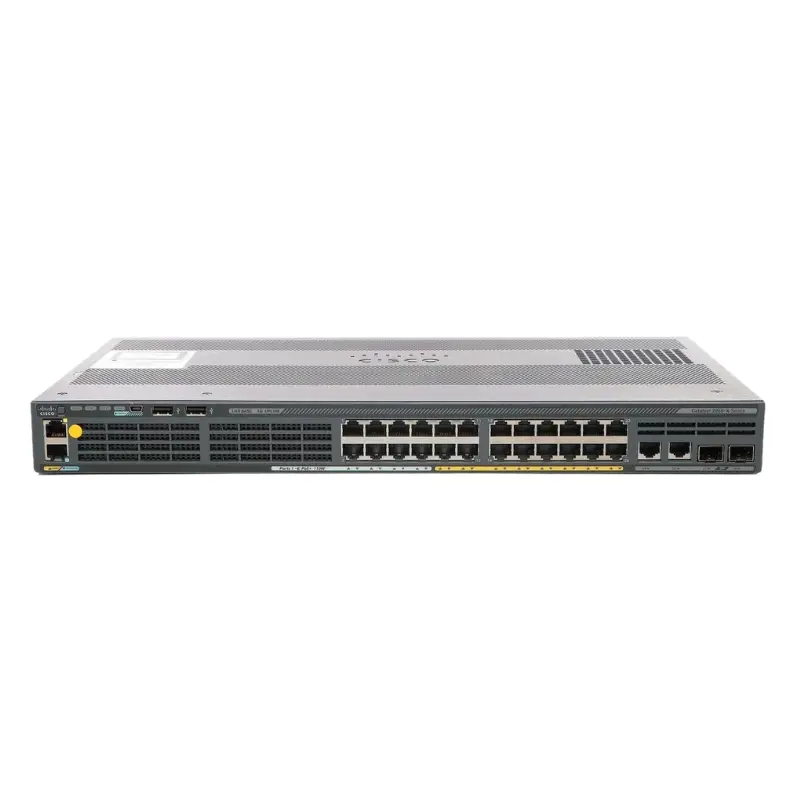

## Main Details of the Cisco WS-C2960X-24PSQ-L ### Overview ? Manufacturer: Cisco ? SKU: WS-C2960X-24PSQ-L ? Product Type: Network Switches ? Sub-Type: 24 Ports ### Key Features #### Device Specifications ? Device Category: Managed Switch with 24 Ports ? Enclosure Style: Desktop/Rack-Mountable (1U) ? Subtype: Gigabit Ethernet ? Ports: 24 x 10/100/1000 Mbps 2 x SFP 2 x 10/100/1000 Mbps ? 24 x 10/100/1000 Mbps ? 2 x SFP ? 2 x 10/100/1000 Mbps ? Power Over Ethernet: PoE+ ? PoE Budget: 92 W #### Performance Metrics ? Switching Capacity: 216 Gbps ? Forwarding Rate: 71.4 Mpps ? VLAN Capacity: 1023 Virtual Interfaces ? Jumbo Frame Support: 9216 Bytes #### Routing and Management Protocols ? Routing Protocols: Static IPv4 Routing Static IPv6 Routing ? Static IPv4 Routing ? Static IPv6 Routing ? Remote Management: SNMP (Versions 1, 2, 2c, 3) RMON (1, 2, 3, 9) Telnet HTTP SSH CLI ? SNMP (Versions 1, 2, 2c, 3) ? RMON (1, 2, 3, 9) ? Telnet ? HTTP ? SSH ? CLI #### Authentication and Security ? Methods: Secure Shell (SSH), RADIUS, TACACS+ #### Advanced Features ? Layer 2 Switching ? Auto-Negotiation ? ARP Support ? CISCO Fast EtherChannel ? VLAN Support ? Auto-Uplink (Auto MDI/MDI-X) ? IGMP Snooping ? Broadcast Storm Control ? IPv6 Support ? Rapid Spanning Tree Protocol (RSTP) ? Dynamic Trunking Protocol (DTP) ? Access Control List (ACL) Support ? Quality of Service (QoS) ? Energy Efficient Ethernet ### Compliance and Standards ? IEEE 802.3, 802.3u, 802.3z, 802.1d, 802.1q ? IEEE 802.3ab, 802.1p, 802.3af, 802.3x, 802.3ad (LACP) ? IEEE 802.1w, 802.1x, 802.1s, 802.3ah, 802.1ab (LLDP) ? IEEE 802.3at, 802.3az ### Hardware Specifications ? Processor: 1 x ARM, 600 MHz ? RAM: 512 MB ? Flash Memory: 128 MB ### Indicators and Connectivity ? Status Indicators: Port Status Link Activity Port Transmission Speed Port Duplex Mode System Status ? Port Status ? Link Activity ? Port Transmission Speed ? Port Duplex Mode ? System Status ### Expansion and Ports ? Interfaces: 8 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE+ 16 x 10Base-T/100Base-TX/1000Base-T – RJ-45 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – Uplink 2 x SFP (Mini-GBIC) 1 x USB – Type A 1 x USB – Type B 1 x Console – RJ-45 1 x Management (LAN) – RJ-45 ? 8 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE+ ? 16 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ? 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – Uplink ? 2 x SFP (Mini-GBIC) ? 1 x USB – Type A ? 1 x USB – Type B ? 1 x Console – RJ-45 ? 1 x Management (LAN) – RJ-45 ### Power Requirements ? Power Supply: Internal ? Voltage Required: AC 120/230 V (50/60 Hz) ## Ports The Cisco WS-C2960X-24PSQ-L Managed Switch is equipped with 24 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and efficient network infrastructure. These ports provide the necessary connectivity for devices such as computers, printers, servers, and IP phones, allowing users to seamlessly communicate and share resources within their network. ### Increased Connectivity With 24 ports, this managed switch offers users the ability to connect a wide range of devices to their network. This is particularly beneficial for businesses that have multiple departments or workstations that require network access. The increased connectivity provided by these ports ensures that users can easily connect and access resources within their network, improving productivity and efficiency. ### Flexibility in Network Design The 24 ports on the Cisco WS-C2960X-24PSQ-L Managed Switch provide flexibility in network design. Users can allocate specific ports to different departments or devices based on their requirements. This allows for better organization and management of the network, ensuring that each device or department has the necessary bandwidth and resources they need to operate efficiently. ### Power over Ethernet (PoE) Support One of the standout features of the Cisco WS-C2960X-24PSQ-L Managed Switch is its support for Power over Ethernet (PoE). This means that the switch can provide power to compatible devices such as IP phones, wireless access points, and surveillance cameras through the Ethernet cable itself, eliminating the need for separate power sources. With 24 PoE ports, users can easily deploy PoE devices without the hassle of running additional power cables, reducing costs and simplifying installation. #### Simplified Deployment of IP Phones For businesses utilizing IP telephony systems, the 24 PoE ports on this managed switch simplify the deployment of IP phones. Users can simply connect their IP phones to any of the available PoE ports, and the switch will automatically provide power, eliminating the need for separate power adapters. This streamlines the installation process and reduces clutter, resulting in a cleaner and more organized workspace. #### Efficient Wireless Access Point Deployment The Cisco WS-C2960X-24PSQ-L Managed Switch’s PoE ports also make it an excellent choice for deploying wireless access points. With these ports, users can easily connect and power their wireless access points, allowing for seamless connectivity and coverage throughout their office or workspace. This eliminates the need for additional power outlets near each access point, simplifying the installation process and reducing cable clutter. ##### Cost Savings The 24 ports on this managed switch offer significant cost savings for businesses. By providing both data connectivity and power over Ethernet, users can eliminate the need for separate power sources and reduce cable clutter. This not only saves on the cost of additional power cables but also simplifies installation and maintenance, resulting in lower overall expenses. ##### Scalability The Cisco WS-C2960X-24PSQ-L Managed Switch’s 24 ports provide scalability for growing businesses. As the organization expands and more devices need to be connected to the network, users can easily add additional devices to the available ports on the switch. This scalability ensures that the network infrastructure can accommodate future growth without requiring significant upgrades or replacements. ## Layer The Cisco WS-C2960X-24PSQ-L Managed Switch operates at Layer 3 of the OSI model, making it a versatile and powerful solution for network management. The Layer 3 functionality offers several benefits to users, including enhanced routing capabilities, improved security features, and better network performance. ### Enhanced Routing Capabilities By operating at Layer 3, this managed switch can perform routing functions, allowing for more efficient and optimized traffic flow within the network. Layer 3 switches have the ability to make intelligent routing decisions based on network protocols, IP addresses, and other factors. This enables users to create more complex network topologies, implement virtual LANs (VLANs), and improve overall network performance. ### Improved Security Features Layer 3 switches offer enhanced security features compared to lower-layer switches. With Layer 3 functionality, users can implement access control lists (ACLs) and other security measures to control and monitor network traffic. This ensures that only authorized users and devices have access to specific resources or services, enhancing network security and protecting sensitive data. #### Access Control Lists (ACLs) One of the key security features provided by Layer 3 switches is the ability to implement access control lists (ACLs). ACLs allow users to define rules that control the flow of traffic based on various criteria such as source IP address, destination IP address, port numbers, and protocols. By configuring ACLs, users can restrict access to specific network resources or services, preventing unauthorized access and potential security breaches. #### Virtual LANs (VLANs) Layer 3 switches also support the creation of virtual LANs (VLANs), which help improve network segmentation and security. VLANs allow users to logically separate different departments or groups within their network, ensuring that each group has its own dedicated resources and cannot directly access resources of other VLANs. This provides an additional layer of security and helps prevent unauthorized access to sensitive information. ##### Better Network Performance Operating at Layer 3 enables the Cisco WS-C2960X-24PSQ-L Managed Switch to offer better network performance compared to lower-layer switches. Layer 3 switches have the capability to route traffic between different subnets or VLANs, reducing the burden on the network’s core routers and improving overall network efficiency. This results in faster data transmission, reduced latency, and improved user experience. ##### Scalability and Flexibility Layer 3 switches provide scalability and flexibility for growing networks. As the number of devices and network traffic increases, Layer 3 switches can handle the increased demand more effectively compared to lower-layer switches. The Cisco WS-C2960X-24PSQ-L Managed Switch’s Layer 3 functionality ensures that the network can accommodate future growth without compromising performance or requiring significant infrastructure upgrades. In conclusion, the Cisco WS-C2960X-24PSQ-L Managed Switch’s 24 ports offer increased connectivity, flexibility in network design, and support for Power over Ethernet (PoE), simplifying the deployment of IP phones and wireless access points. The Layer 3 functionality provides enhanced routing capabilities, improved security features, better network performance, and scalability for growing networks. Whether it’s for small to medium-sized businesses or larger enterprises, this managed switch is a reliable and efficient solution for building a robust network infrastructure.
