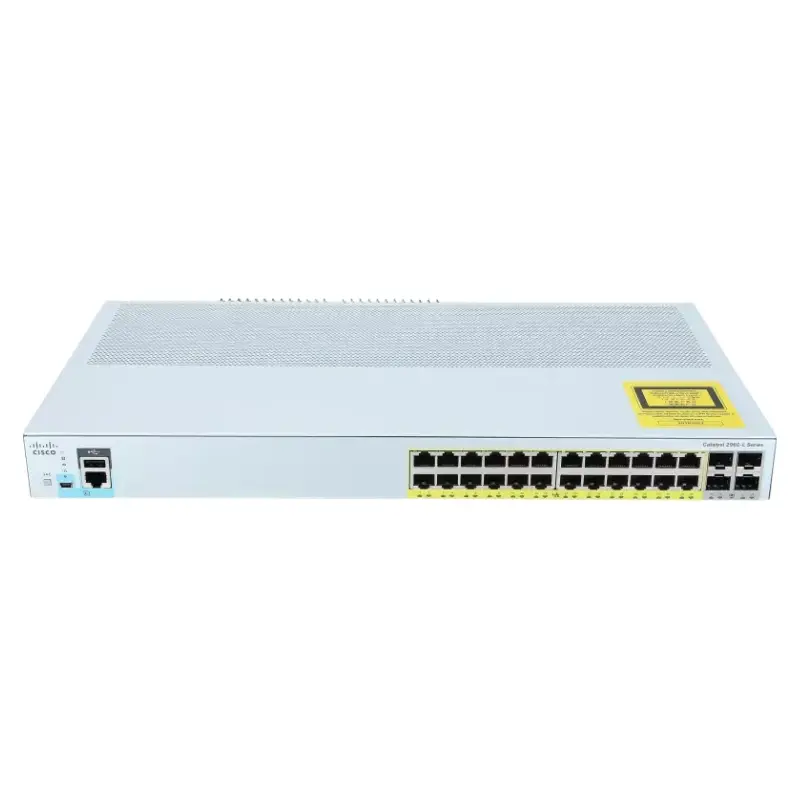

## Ports ### High-Density Connectivity The Cisco WS-C2960L-24PS-LL Managed Switch is equipped with 24 ports, offering high-density connectivity for your networking needs. With these 24 ports, you can easily connect numerous devices such as computers, printers, servers, and IP phones to create a robust network infrastructure. This switch ensures that you have enough ports to support the growing demands of your business while providing seamless connectivity. ## General Information ? Manufacturer: Cisco ? Model Number: WS-C2960L-24PS-LL ? Product Line: Catalyst ? Series: 2960-L ? Product Type: Ethernet Switch ## Port Configuration ### Network Ports ? Total Network Ports: 24 ? Uplink Ports: Yes ? Modular Design: Yes ? Stack Ports: No ### Expansion Slots ? Uplink Ports: 4 x Gigabit Ethernet ? Network Ports: 24 x Gigabit Ethernet ## Performance Features ### Media and Technology ? Supported Media Types: Optical Fiber, Twisted Pair ? Ethernet Technology: 10 Gigabit Ethernet, Gigabit Ethernet ? Network Technology: 10/100/1000Base-T, 1000Base-X ### Memory and Processing ? Processor: ARM7, 800 MHz ? Flash Memory: 256 MB ? Installed RAM: 512 MB ? RAM Technology: RAM, Flash ## Power and Environmental Specifications ### Power Requirements ? Power Source: Power Supply ? Maximum Power Consumption: 9 Watts ### Environmental Conditions ? Operating Temperature: 23?F to 113?F ? Storage Temperature: -13?F to 158?F ? Operating Humidity Range: 5% to 90% non-condensing ? Storage Humidity Range: 5% to 95% non-condensing ## Features and Capabilities ### Key Features ? DHCP and BOOTP Support ? Auto-negotiation and Auto-uplink (auto MDI/MDI-X) ? Intrusion Detection System (IDS) and Storm Control (Broadcast, Multicast, Unicast) ? Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP) ? Dynamic Trunking Protocol (DTP) and Port Aggregation Protocol (PAgP) ? Access Control List (ACL) and Dynamic ARP Inspection (DAI) ? Cisco EnergyWise and Uni-Directional Link Detection (UDLD) ? Link Aggregation Control Protocol (LACP) and Port Security ? Energy Efficient Ethernet and Management Information Base (MIB) ? Dynamic VLAN Support (GVRP) and Class of Service (CoS) ? IGMP Filtering, Weighted Tail Drop (WTD), and VLAN Trunking Protocol (VTP) ? Spanning-tree Root Guard (STRG) and Network Timing Protocol (NTP) ? Fanless Design for silent operation ## Compliance and Standards ### IEEE Standards Compliance ? IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.1p ? IEEE 802.3af, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s ? IEEE 802.3ah, 802.3at, 802.3az, 802.1AX ## Protocols and Networking Support ### Supported Protocols ? PoE+, Ethernet, Fast Ethernet, Gigabit Ethernet ? IEEE 802.1x, IPv4, IPv6, ACL, SSH, TACACS+ ? IGMP, RADIUS, IEEE 802.1S (MSTP), IEEE 802.1w (RSTP) ? QoS, IEEE 802.1p, CoS, DHCP, ARP, TFTP, NTP ? MLD, IEEE 802.3az, USB, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1AB ? IEEE 802.3ad, IEEE 802.3af (PoE), IEEE 802.3at, IEEE 802.3ah ? IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae ## Remote Management and Routing Protocols ### Management Protocols ? SNMP (v1, v2c, v3), CLI, RMON (v1, v2) ? Telnet, HTTP ### Routing Capabilities ? IGMP, MLD, MLDv2 ### Flexible Deployment Options The 24 ports of the Cisco WS-C2960L-24PS-LL Managed Switch provide you with flexibility in deploying your network. Whether you need to set up a small office network or a larger enterprise-level infrastructure, this switch has you covered. The ample number of ports allows you to connect all your devices without the need for additional switches or complicated configurations. ### PoE Support This managed switch also features Power over Ethernet (PoE) support on all 24 ports. PoE technology enables you to power compatible devices, such as IP phones, wireless access points, and surveillance cameras, using the Ethernet cable itself. This eliminates the need for separate power adapters and simplifies your network setup. With the Cisco WS-C2960L-24PS-LL Managed Switch, you can conveniently power your PoE-enabled devices directly from the switch, reducing cable clutter and ensuring uninterrupted operation. #### Cost Savings By utilizing the 24 PoE ports on this switch, you can save on costs associated with purchasing additional power sources for your devices. With traditional switches, you would need separate power adapters for each PoE-enabled device. The Cisco WS-C2960L-24PS-LL eliminates this need by providing power directly through the Ethernet cables. This cost-effective solution not only saves you money but also simplifies your network infrastructure. #### Flexibility in Device Placement The availability of 24 PoE ports ensures flexibility in placing your devices. You no longer need to worry about locating your devices near power outlets, as the switch can provide power through the Ethernet cables. This flexibility allows you to optimize the placement of your devices for better network coverage and convenience. ### Simplified Network Management With 24 ports on the Cisco WS-C2960L-24PS-LL Managed Switch, you can easily manage and organize your network. Each port can be assigned to a specific device or group of devices, making it simpler to troubleshoot and identify any issues. The intuitive management interface of this switch allows you to monitor and configure each port individually, ensuring optimal performance and security. #### Improved Network Performance Having 24 ports at your disposal ensures that your network can handle high traffic volumes without any bottlenecks. Each device connected to the switch has its dedicated port, minimizing data congestion and maximizing network performance. Whether you are transferring large files or running bandwidth-intensive applications, the Cisco WS-C2960L-24PS-LL Managed Switch guarantees smooth and efficient data transmission. #### Enhanced Security The Cisco WS-C2960L-24PS-LL Managed Switch offers advanced security features to protect your network and data. With 24 ports, you can segregate devices based on their security requirements. For example, you can create separate VLANs (Virtual Local Area Networks) for different departments or guest networks, ensuring that sensitive data remains isolated from unauthorized access. By utilizing the 24 ports effectively, you can strengthen your network’s security posture. ##### Quality of Service (QoS) The 24 ports on this managed switch support Quality of Service (QoS) features, allowing you to prioritize certain types of traffic. QoS enables you to allocate network resources based on the importance of the data being transmitted. For example, you can prioritize voice and video traffic to ensure clear and uninterrupted communication. With QoS support, the Cisco WS-C2960L-24PS-LL Managed Switch helps optimize your network performance and user experience. ##### Scalability The 24 ports of this switch offer excellent scalability for future network expansion. As your business grows and your networking requirements increase, you can easily add more devices to the switch without the need for additional equipment. This scalability ensures that your network infrastructure can accommodate new devices and technologies seamlessly, saving you from costly upgrades or replacements down the line. In conclusion, the Cisco WS-C2960L-24PS-LL Managed Switch with its 24 ports provides high-density connectivity, flexibility in deployment, and Power over Ethernet support. The numerous benefits of having 24 ports include cost savings, flexibility in device placement, simplified network management, improved network performance, enhanced security, Quality of Service support, and scalability. With this switch, you can effortlessly handle the demands of your network while ensuring seamless connectivity and optimal performance for all connected devices.
