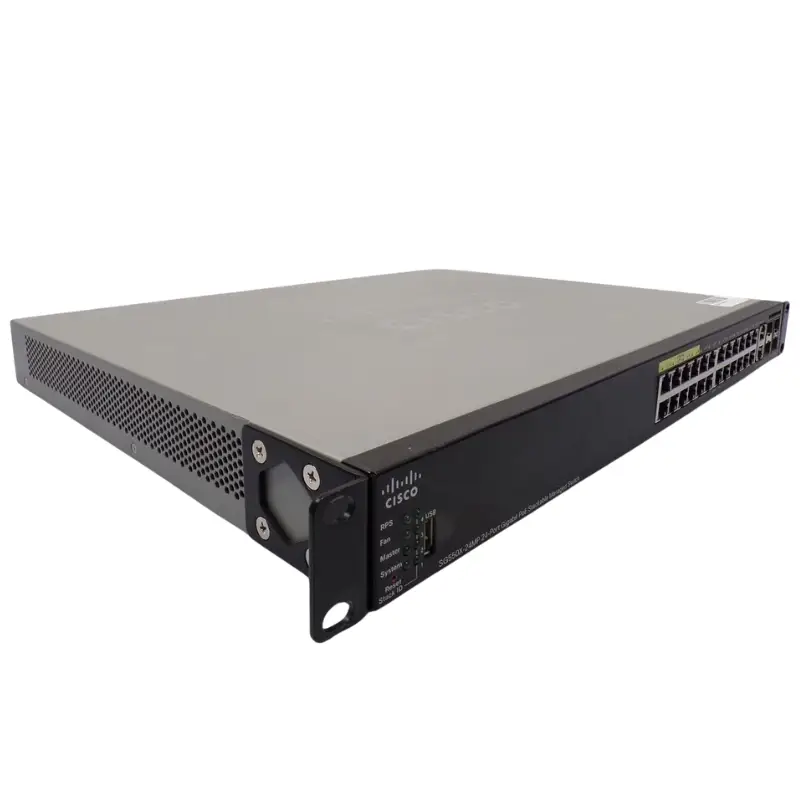

## Ports The Cisco SG550X-24P-K9 Stackable Switch is equipped with 24 ports, making it an ideal choice for businesses that require a high number of network connections. These ports provide the necessary connectivity for various devices, including computers, printers, servers, and IP phones. With 24 ports, users can easily connect multiple devices to the switch without the need for additional networking equipment. ## Overview of the Cisco SG550X-24P-K9 Switch ### Basic Specifications ? Manufacturer: Cisco ? Model: SG550X-24P-K9 ? Series: 550X ? Switch Type: Layer 3 ### Network Ports and Connectivity #### Total Ports ? 24 x Gigabit Ethernet Ports ? 4 x 10 Gigabit Ethernet Expansion Slots ? 2 x 10 Gigabit Ethernet Uplinks #### Port Features ? Modular Configuration ? Stacking Capabilities ### Performance Metrics #### Forwarding and Switching ? Forwarding Rate: 95.23 Mpps for 64-byte packets ? Switching Capacity: 128 Gbps ? MAC Address Table: 16,000 entries ? Jumbo Frame Support: Up to 9216 bytes ### Media and Technology Support #### Supported Media Types ? Twisted Pair ? Optical Fiber #### Networking Technologies ? 10 Gigabit Ethernet ? Gigabit Ethernet ? 10GBase-T, 10/100/1000Base-T, 10GBase-X ### Expansion Capabilities #### Slots and Types ? 4 x SFP+ Expansion Slots ? Shared SFP Slot Available ### Memory and Storage ? RAM: 256 MB ? Flash Memory: 32 MB ### Network Management and Protocols #### Management Features ? Manageable via Various Protocols ? Supported Protocols: SNMP v1, v2c, v3, HTTP, HTTPS #### Routing Protocols ? Static IP Routing ### Power and Consumption #### Power Specifications ? Source: Internal Power Supply ? PoE Budget: 195W ? Voltage Range: 100 ? 240V ? Frequency: 47 ? 63 Hz #### Consumption ? 110V: 49.4W ? 220V: 50.1W #### Redundancy ? Redundant Power Supply Not Supported ### Package Contents ? SG550X-24P Layer 3 Switch ? Power Cord ? 1 x Serial Cable ? Rack Mounting Kit ? MTBF: 299,949 Hours ? CD-ROM with User Documentation (PDF) ? Quick Start Guide ### Compliance and Standards ? IEEE 802.3, IEEE 802.3u, IEEE 802.3z ? IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab ? IEEE 802.1p, IEEE 802.3af, IEEE 802.3x ? IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x ? IEEE 802.1s, IEEE 802.3at, IEEE 802.3az ### Increased Flexibility Having 24 ports on the Cisco SG550X-24P-K9 Stackable Switch offers increased flexibility for businesses. This switch allows users to connect a wide range of devices simultaneously, enabling efficient communication and data transfer. Whether it’s a small office or a large enterprise, the 24 ports provide ample room for expansion and accommodate the growing needs of the organization. #### Reduced Network Congestion By offering 24 ports, this switch helps in reducing network congestion. Each port serves as an individual connection point, allowing devices to communicate directly with each other without putting strain on the network. This eliminates bottlenecks and ensures smooth data flow, resulting in improved network performance and reduced latency. #### Network Scalability The 24 ports on the Cisco SG550X-24P-K9 Stackable Switch enable easy network scalability. As businesses expand and add more devices to their network, having additional ports readily available eliminates the need for purchasing new switches or networking equipment. Users can simply connect their new devices to the available ports on the switch, ensuring a seamless and hassle-free scaling process. ##### Cost Savings With 24 ports, this switch offers cost savings for businesses. Instead of investing in multiple switches to accommodate all devices, users can consolidate their network infrastructure by utilizing the available ports on this switch. This not only reduces upfront costs but also lowers maintenance and management expenses associated with maintaining multiple switches. ## Layer The Cisco SG550X-24P-K9 Stackable Switch operates at Layer 3 of the OSI model, providing advanced networking capabilities and enhanced functionality. This layer is responsible for network routing and enables communication between different network segments. The Layer 3 capability of this switch brings several benefits for users. ### Improved Network Performance By operating at Layer 3, the Cisco SG550X-24P-K9 Stackable Switch enhances network performance. It allows for efficient routing of data packets between different subnets or VLANs, ensuring optimal data flow and reducing network congestion. This results in improved overall network performance and faster data transfer speeds. #### Network Segmentation The Layer 3 capability of this switch enables network segmentation, which is crucial for businesses with diverse departments or security requirements. By dividing the network into smaller segments, users can isolate specific groups of devices, improving security and control over network traffic. This segmentation also helps in optimizing network resources and simplifying network management. #### Inter-VLAN Routing Inter-VLAN routing is another significant benefit provided by the Layer 3 feature of the Cisco SG550X-24P-K9 Stackable Switch. It allows for communication between different VLANs, enabling devices in separate VLANs to exchange data. This feature enhances flexibility and facilitates efficient collaboration across departments or workgroups without compromising security. ##### Enhanced Security Layer 3 functionality enhances network security by providing access control capabilities. The Cisco SG550X-24P-K9 Stackable Switch supports features like Access Control Lists (ACLs) and Network Address Translation (NAT), which allow administrators to define granular rules for controlling traffic flow and protecting sensitive data. This ensures that only authorized devices and users can access specific network resources, reducing the risk of unauthorized access or data breaches. ## Management The Cisco SG550X-24P-K9 Stackable Switch offers managed capabilities, providing users with extensive control and configuration options for their network. This management feature is essential for businesses that require advanced network management capabilities and centralized control over their network infrastructure. ### Centralized Network Control With the managed feature, users have centralized control over their network infrastructure. They can configure and manage the switch through a graphical user interface (GUI) or command-line interface (CLI), allowing for easy network administration. This centralized control simplifies network management tasks, such as monitoring network performance, troubleshooting issues, and implementing security measures. #### Advanced Configuration Options The managed capability of the Cisco SG550X-24P-K9 Stackable Switch provides advanced configuration options to meet specific business requirements. Users can customize various settings, including VLAN configuration, Quality of Service (QoS) parameters, and link aggregation. These options allow businesses to optimize their network for performance, prioritize critical applications, and allocate bandwidth efficiently. #### Network Monitoring and Troubleshooting The managed feature enables comprehensive network monitoring and troubleshooting capabilities. Users can monitor network traffic, track performance metrics, and identify potential bottlenecks or issues in real-time. This proactive approach to network management helps in maintaining a stable and reliable network infrastructure, minimizing downtime, and ensuring smooth business operations. ##### Enhanced Security Management Managed switches like the Cisco SG550X-24P-K9 also offer enhanced security management features. Users can implement robust security measures such as port security, MAC address filtering, and 802.1X authentication to protect the network from unauthorized access or malicious activities. The ability to centrally manage these security features simplifies the implementation and enforcement of security policies across the entire network. In conclusion, the Cisco SG550X-24P-K9 Stackable Switch’s 24 ports, Layer 3 capability, and managed features bring significant benefits and importance for users. The 24 ports offer increased flexibility, reduced network congestion, scalability, and cost savings. The Layer 3 functionality enhances network performance, enables network segmentation, and facilitates inter-VLAN routing for enhanced security. The managed capabilities provide centralized control, advanced configuration options, network monitoring, troubleshooting capabilities, and enhanced security management. Overall, this switch is a reliable and powerful networking solution that caters to the diverse needs of businesses.
