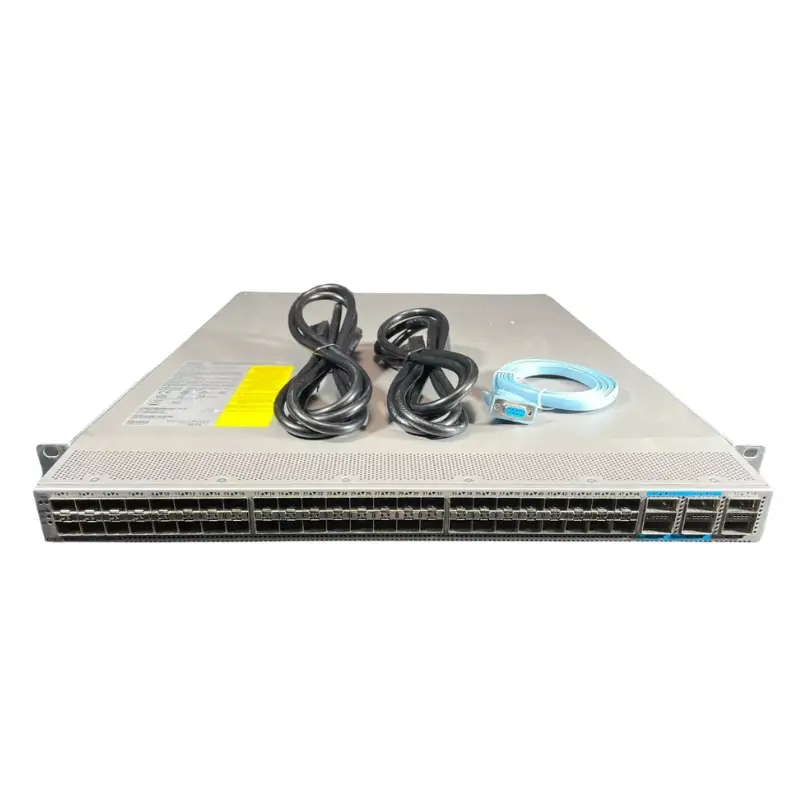

## Overview of the Cisco N9K-C92160YC-X Layer 3 Switch ### Manufacturer Details ? Brand: Cisco ? Part Number: N9K-C92160YC-X ? Product Family: Nexus ? Series: 9000 ? Device Type: Layer 3 Switch ### Technical Specifications #### Port Configuration ? Uplink Ports: Not available ? Modular Design: Yes ? Stack Ports: Not included ? Expansion Slots: 6 x 40 Gigabit Ethernet 48 x 10 Gigabit Ethernet ? 6 x 40 Gigabit Ethernet ? 48 x 10 Gigabit Ethernet #### Media and Performance ? Supported Media Type: Optical Fiber ? Ethernet Standards: 40 Gigabit Ethernet 10 Gigabit Ethernet ? 40 Gigabit Ethernet ? 10 Gigabit Ethernet ? Networking Technologies: 10GBase-X 40GBase-X ? 10GBase-X ? 40GBase-X ### I/O Expansion Capabilities ? Total Expansion Slots: 54 ? Expansion Slot Types: SFP+ QSFP+ ? SFP+ ? QSFP+ ? SFP+ Slot Count: 48 ### Networking and Communication Layers ? Supported Layer: Layer 3 ### Management and Protocols ? Manageable: Yes ### Capacity and Performance Metrics ? Longest Prefix Match (LPM) Entries (IPv4): 16,000 ? Longest Prefix Match (LPM) Entries (IPv6): 20,000 ? Multicast IPv4 Routes: 32,000 ? Virtual LAN Interfaces (VLANs): 4,096 ? Equal-Cost Multipath (ECMP) Routes: 64 ? Multiple Spanning Tree Protocol (MSTP) Instances: 64 ? Per-VLAN Rapid Spanning Tree Plus Instances: 507 ? Virtual Routing and Forwarding (VRF) Entries: 16,000 ? IGMP Snooping Entries: 32,000 ? Access Control List Entries (Ingress): 4,000 ? Access Control List Entries (Egress): 2,000 ? MAC Address Table Capacity: 96,000 Entries ### Key Features ? Support for Virtual LANs (VLAN) ? IGMP Snooping Capability ? Multiple Spanning Tree Protocol (MSTP) Functionality ? Access Control List (ACL) Implementation ? Per-VLAN Rapid Spanning Tree (PVRST) Feature ? Hot Standby Router Protocol (HSRP) Integration ? VXLAN Tunnel Endpoints (VTEP) Capability ? Virtual Extensible LAN (VXLAN) Support ? Open Shortest Path First (OSPF) Protocol ? Source-Specific Multicast (SSM) Support ? Ethernet Virtual Private Network (EVPN) Functionality ### Power Specifications ? Power Source: Power Supply ? Redundant Power Supply Compatibility: Yes ## Ports The Cisco N9K-C92160YC-X Managed Switch is equipped with 48 ports, making it an ideal choice for businesses and organizations that require a high number of network connections. These ports offer a wide range of benefits and importance for users. ### Increased Connectivity With 48 ports, this switch allows for increased connectivity within a network. It provides ample room for connecting multiple devices such as computers, servers, printers, and other network-enabled devices. This ensures that all devices can be easily connected to the network without the need for additional hardware or switches. ### Scalability The large number of ports on the Cisco N9K-C92160YC-X Managed Switch allows for scalability in network expansion. As businesses grow and require more network connections, this switch can accommodate the increased demand without the need for additional infrastructure investments. This scalability is essential for future-proofing a network and ensuring that it can handle the growing needs of an organization. ### Flexibility The 48 ports on this switch offer users flexibility in their network design. With a variety of ports available, users can connect different types of devices and utilize various network technologies. This flexibility allows for the creation of a customized network setup that meets the specific requirements of an organization. ### Improved Network Performance Having 48 ports on the Cisco N9K-C92160YC-X Managed Switch ensures that each device connected to the network has its dedicated connection. This eliminates congestion and improves network performance by reducing latency and packet loss. Users can experience faster data transfer rates and smoother communication between devices. #### Efficient Network Management The large number of ports simplifies network management tasks. Each port can be assigned to specific devices or departments, making it easier to monitor and troubleshoot network issues. Network administrators can easily identify the source of a problem or isolate a specific device without disrupting the entire network. #### Redundancy and Failover The 48 ports also allow for redundancy and failover configurations. By connecting devices to multiple ports, users can implement redundancy in their network setup. This ensures that if one port or connection fails, the network traffic can be automatically redirected to another port, minimizing downtime and ensuring continuous network availability. ##### Cost Savings Having 48 ports on a single switch eliminates the need for additional switches or hardware. This not only reduces the overall infrastructure cost but also simplifies the network setup and maintenance. Users can save on equipment costs and streamline their network management processes. ##### Future-Proofing The 48 ports on the Cisco N9K-C92160YC-X Managed Switch provide a future-proof solution for evolving network requirements. As technology advances and new devices enter the market, having a high number of ports ensures that users can easily connect and integrate these devices into their existing network infrastructure. ## Speed The Cisco N9K-C92160YC-X Managed Switch offers a speed of 10 Gigabit, making it suitable for high-bandwidth applications and data-intensive tasks. The speed feature provides several benefits and importance for users. ### Fast Data Transfer The 10 Gigabit speed allows for fast data transfer rates, enabling users to quickly send and receive large files, videos, and other data-intensive content. This is especially crucial in scenarios where time-sensitive information needs to be transmitted, such as in real-time collaboration or multimedia streaming. ### Reduced Network Congestion By offering a high-speed connection, the Cisco N9K-C92160YC-X Managed Switch helps reduce network congestion. Large amounts of data can be transmitted without causing bottlenecks or slowing down the network. Users can enjoy smooth and uninterrupted network performance, even during peak usage periods. ### Improved Application Performance The 10 Gigabit speed enhances the performance of bandwidth-intensive applications and services. Applications that require a significant amount of network resources, such as video conferencing, virtualization, and cloud computing, can operate at optimal speeds without experiencing lag or delays. This improves overall productivity and user experience. #### Efficient Data Backup and Recovery The fast data transfer rate provided by the 10 Gigabit speed allows for efficient data backup and recovery processes. Large volumes of data can be quickly backed up to offsite locations or restored in case of data loss or system failures. This ensures business continuity and minimizes downtime. #### Support for High-Density Environments The 10 Gigabit speed is particularly valuable in high-density environments where numerous devices are connected to the network. Examples include data centers, server rooms, and enterprise networks with a large number of users. The high-speed connection ensures that all devices can communicate efficiently without compromising performance. ##### Future-Proofing The 10 Gigabit speed is future-proof as it supports the increasing demand for high-bandwidth applications and emerging technologies. As more devices and services require faster network speeds, having a switch that can handle 10 Gigabit connections ensures that users can adopt new technologies without requiring a network infrastructure upgrade. ##### Competitive Advantage Harnessing the power of 10 Gigabit speed gives businesses a competitive edge in today’s fast-paced digital landscape. Organizations that can quickly transfer data, leverage bandwidth-intensive applications, and provide seamless user experiences gain a significant advantage over their competitors. ## Uplink Ports The Cisco N9K-C92160YC-X Managed Switch features 40 Gigabit SFP+ uplink ports, offering high-speed connections for linking the switch to the core network or other switches. The uplink ports provide several benefits and importance for users. ### High-Speed Uplinks The 40 Gigabit SFP+ uplink ports allow for high-speed connections between the switch and the core network infrastructure. This ensures that the switch can handle large amounts of data and provides fast communication with the network backbone. High-speed uplinks are crucial for maintaining network performance and minimizing bottlenecks. ### Scalability and Flexibility The presence of 40 Gigabit SFP+ uplink ports enables scalability and flexibility in network design. Users can easily connect multiple switches or expand their network by linking additional devices to the uplink ports. This flexibility allows for future growth and adaptability to changing business needs. ### Improved Network Resilience The 40 Gigabit SFP+ uplink ports support link aggregation and redundancy protocols, enhancing network resilience. Link aggregation combines multiple physical connections to create a high-bandwidth link, increasing overall network capacity and providing failover capabilities in case of link failures. This improves network availability and minimizes downtime. #### Efficient Traffic Management The high-speed uplink ports enable efficient traffic management within the network. Users can prioritize critical data traffic or allocate dedicated uplinks for specific departments or services. This ensures that important data flows smoothly while preventing congestion or performance issues in other parts of the network. #### Support for Virtualization 40 Gigabit SFP+ uplink ports are well-suited for virtualized environments where multiple virtual machines or network functions need to communicate across the network. The high-speed connections facilitate efficient data transfer between virtual machines or virtual networks, providing optimal performance for virtualized workloads. ##### Enhanced Network Security The 40 Gigabit SFP+ uplink ports support advanced network security features such as access control lists (ACLs) and traffic filtering. These features allow users to enforce security policies, monitor and control network traffic, and protect against unauthorized access or malicious activity. The high-speed uplinks ensure that security measures do not impact network performance. ##### Future-Proofing The 40 Gigabit SFP+ uplink ports offer future-proof connectivity for evolving network requirements. As networks continue to grow in size and complexity, having high-speed uplinks ensures that users can handle increasing data volumes, integrate new technologies, and adapt to changing business needs without compromising performance.
