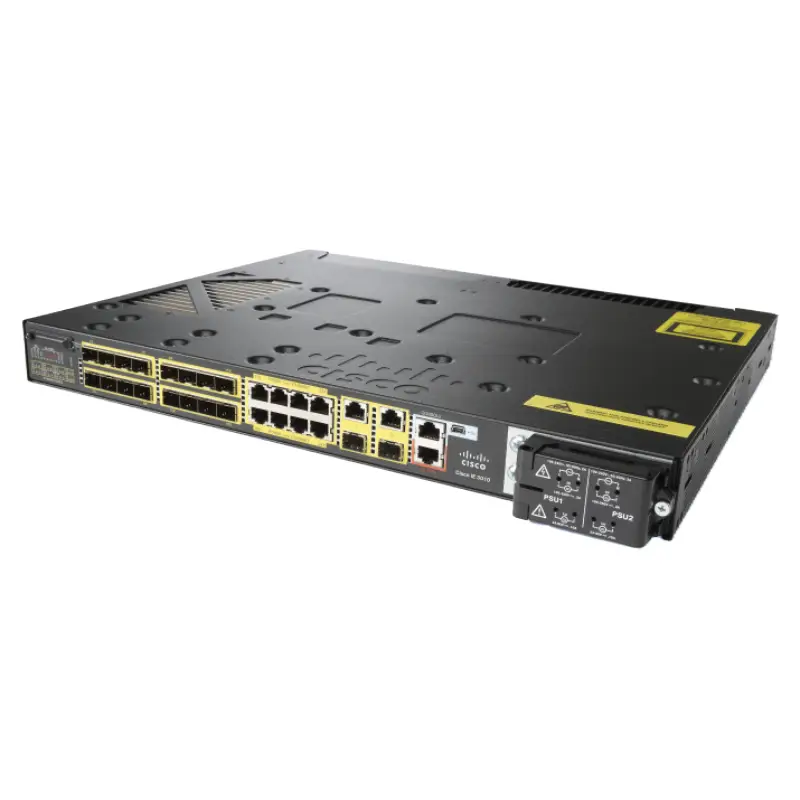

Overview of Cisco IE-3010-16S-8PC Ethernet Switch General Details ? Manufacturer: Cisco ? Part Number: IE-3010-16S-8PC ? Series: 3010 ? Product Type: Ethernet Switch ### Port Configuration ? Total Network Ports: 16 ? Uplink Ports: Yes ? USB Ports: Yes ? PoE (RJ-45) Ports: 8 ? Fast Ethernet Ports: 8 ? Gigabit Ethernet Uplink Ports: 2 ? Fast Ethernet Expansion Slots: 16 ? Gigabit Ethernet Expansion Slots: 2 ### Media & Performance Specifications ? Ethernet Technology: Gigabit Ethernet, Fast Ethernet ? Network Technology: 10/100/1000Base-T, 10/100Base-TX ### I/O Expansion ? Total Expansion Slots: 18 ? Slot Type: SFP ? Shared SFP Slot: Yes ? Number of SFP Slots: 18 ### Networking & Communication Capabilities ? Layer Support: Layer 2 ### Key Features ? DHCP ? VLAN ? IGMP Snooping ? MAC Address Filtering ? Broadcast Storm Control ? Multicast Storm Control ? Unicast Storm Control ? Spanning Tree Protocol (STP) Support ? Rapid Spanning Tree Protocol (RSTP) Support ? Multiple Spanning Tree Protocol (MSTP) Support ? DHCP Snooping ? Access Control List (ACL) Support ? Quality of Service (QoS) ? Jumbo Frames Support ? MLD Snooping ? Dynamic ARP Inspection (DAI) ### Compliance Standards ? IEEE 802.3 ? IEEE 802.3u ? IEEE 802.3z ? IEEE 802.1D ? IEEE 802.1Q ? IEEE 802.3ab ? IEEE 802.1p ? IEEE 802.3af ? IEEE 802.3x ? IEEE 802.3ad (LACP) ? IEEE 802.1w ? IEEE 802.1x ? IEEE 802.1s ? IEEE 802.1ag ? IEEE 802.1ab (LLDP) ### Authentication Methods ? RADIUS ? TACACS+ ? Secure Shell v.2 (SSH2) ### Management & Protocols ? Remote Management Protocols: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH-2 ? Manageable: Yes ### Memory Specifications ? Standard Memory: 256 MB ? Memory Technology: DDR2 SDRAM ? Flash Memory: 1 GB ### Power Description ? PoE (RJ-45) Port: Yes ? Input Voltage: 110 V AC, 220 V AC ? Power Source: Power Supply ? Redundant Power Supply: Yes ### Software & System Requirements ? Software Included: Cisco IOS LAN Base ### Environmental Conditions ? Minimum Operating Temperature: -40 ?F ? Maximum Operating Temperature: 140 ?F ? Operating Humidity Range: 5 ? 95% (non-condensing) ? Minimum Storage Temperature: -40 ?F ? Maximum Storage Temperature: 185 ?F ? Storage Humidity Range: 5 ? 95% (non-condensing) ## Ports The Cisco IE-3010-16S-8PC Managed Switch is equipped with 16 ports, making it an ideal choice for businesses and organizations that require a high level of connectivity. These ports provide users with the ability to connect multiple devices and expand their network infrastructure. ### Increased Connectivity With 16 ports, the Cisco IE-3010-16S-8PC Managed Switch offers users increased connectivity options. This allows businesses to connect more devices to their network, such as computers, printers, servers, and other network devices. The increased number of ports ensures that there is sufficient capacity to handle the growing demands of the network. #### Flexibility in Network Design The 16 ports of the Cisco IE-3010-16S-8PC Managed Switch provide users with flexibility in network design. Users can easily create VLANs (Virtual Local Area Networks) and assign different ports to different VLANs. This allows for better network segmentation and improved security. Additionally, users can configure the ports to support various networking protocols, such as Ethernet, Fast Ethernet, and Gigabit Ethernet, depending on their specific requirements. ##### Scalability The 16 ports of the Cisco IE-3010-16S-8PC Managed Switch offer scalability for businesses and organizations. As the network grows and more devices need to be connected, users can simply add additional switches with 16-port capacities to expand their network infrastructure. This eliminates the need for costly upgrades or replacements and provides a cost-effective solution for network expansion. The importance of having 16 ports on the Cisco IE-3010-16S-8PC Managed Switch cannot be overstated. It allows businesses and organizations to have a flexible and scalable network infrastructure that can accommodate their growing needs. The increased connectivity options provided by the 16 ports enable users to connect more devices to their network, improving productivity and efficiency. ## Features One of the standout features of the Cisco IE-3010-16S-8PC Managed Switch is its focus on Industrial Ethernet. This feature makes it an ideal choice for businesses and organizations operating in industrial environments where reliability and durability are crucial. ### Industrial-Grade Reliability The Cisco IE-3010-16S-8PC Managed Switch is specifically designed to withstand harsh industrial environments. It is built to operate reliably in extreme temperatures, high humidity, and dusty conditions. This makes it suitable for deployment in manufacturing plants, oil refineries, transportation facilities, and other industrial settings where traditional network switches may not be able to withstand the conditions. #### Enhanced Security Industrial environments often require a higher level of security to protect sensitive data and critical infrastructure. The Cisco IE-3010-16S-8PC Managed Switch offers advanced security features such as access control lists (ACLs), port security, and Secure Shell (SSH) encryption. These features help prevent unauthorized access to the network and protect against potential cyber threats. ##### Improved Performance The Industrial Ethernet feature of the Cisco IE-3010-16S-8PC Managed Switch ensures optimal performance in industrial environments. It supports high-speed data transfer rates and provides low-latency communication, ensuring that critical data is transmitted quickly and accurately. This is essential in industries where real-time monitoring and control are necessary for efficient operations. The importance of the Industrial Ethernet feature cannot be underestimated for businesses operating in industrial environments. The reliability, enhanced security, and improved performance offered by this feature make the Cisco IE-3010-16S-8PC Managed Switch a valuable asset for industries that rely on a robust network infrastructure. ## Series The Cisco IE-3010-16S-8PC Managed Switch belongs to the 3010 series, which offers unique benefits and advantages for users in various industries. ### Specialized Features The 3010 series is specifically designed to meet the demands of industrial environments. It incorporates specialized features that cater to the unique requirements of industries such as manufacturing, oil and gas, transportation, and utilities. These features include ruggedized construction, support for industrial protocols, and advanced security capabilities. #### Seamless Integration The Cisco IE-3010-16S-8PC Managed Switch seamlessly integrates with other devices and systems commonly found in industrial environments. It supports protocols such as Modbus, DNP3, and PROFINET, allowing for easy integration with industrial automation and control systems. This enables businesses to leverage their existing infrastructure and reduce implementation costs. ##### Reliability and Durability The 3010 series is known for its reliability and durability. The Cisco IE-3010-16S-8PC Managed Switch is built to withstand harsh conditions, including extreme temperatures, vibrations, and electrical noise. This ensures uninterrupted operations in industrial environments where downtime can be costly and disruptive. The 3010 series is designed to cater specifically to the needs of industries that require a robust and reliable network infrastructure. The specialized features, seamless integration capabilities, and exceptional reliability make the Cisco IE-3010-16S-8PC Managed Switch an ideal choice for businesses operating in challenging industrial environments. In conclusion, the Cisco IE-3010-16S-8PC Managed Switch offers a range of features that are essential for businesses operating in various industries. The 16 ports provide increased connectivity options, flexibility in network design, and scalability for future expansion. The Industrial Ethernet feature ensures reliability, enhanced security, and improved performance in harsh industrial environments. Lastly, the 3010 series offers specialized features, seamless integration capabilities, and exceptional reliability, making it a valuable asset for industries that require a robust network infrastructure. Whether it is connecting multiple devices, withstanding extreme conditions, or integrating with industrial systems, the Cisco IE-3010-16S-8PC Managed Switch is a reliable and versatile solution for businesses and organizations.
