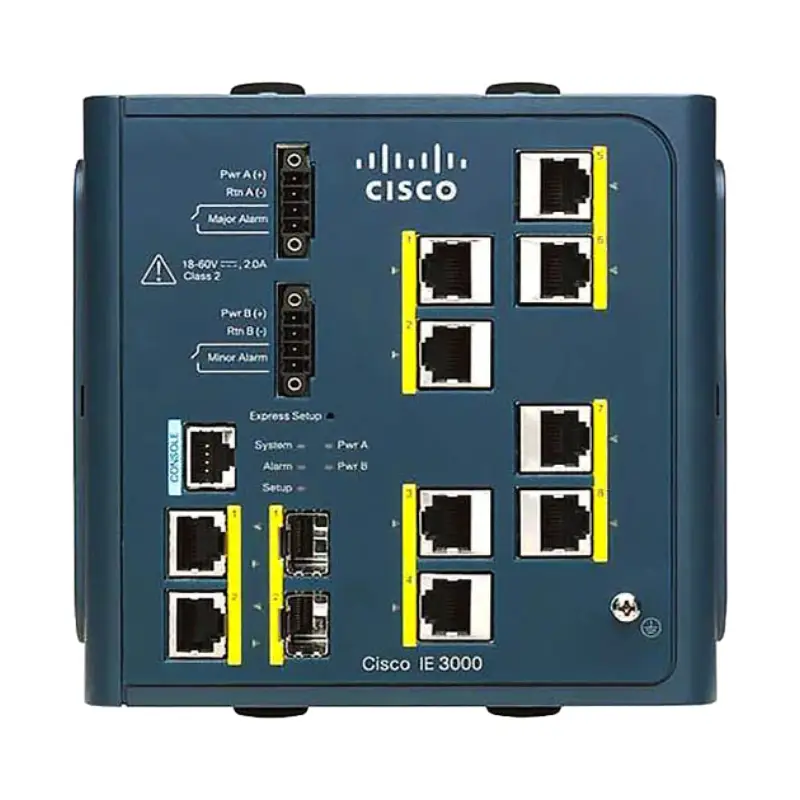

## Series: Industrial 3000 The Cisco IE-3000-8TC Ethernet Switch Module is part of the Industrial 3000 series, which is specifically designed to meet the needs of industrial environments. This series offers a range of features and capabilities that make it ideal for use in industries such as manufacturing, transportation, and oil and gas. ### Product Details ? Manufacturer: Cisco ? Model Number: IE-3000-8TC ? Product Series: 3000 ? Type: Ethernet Switch ### Interface and Port Configuration ? Total Network Ports: 10 ? RJ-45 Ports: 8 (Fast Ethernet) ? Gigabit Ethernet Expansion Slots: 2 #### Performance Metrics ? Ethernet Technology: Gigabit Ethernet ? Network Technology: 10/100Base-TX ? Forwarding Rate (64-byte packets): 6.5 Mpps ? Switching Fabric: 16 Gbps ? Memory: DRAM: 128 MB Compact Flash: 64 MB Layer 2 MAC Addresses: Up to 8000 Layer 3 MAC Addresses: Up to 2000 IGMP Multicast Groups (Layer 2): Up to 256 IGMP Groups/Multicast Routes (Layer 3): Up to 1000 Unicast Routes (Layer 3): Up to 3000 ? DRAM: 128 MB ? Compact Flash: 64 MB ? Layer 2 MAC Addresses: Up to 8000 ? Layer 3 MAC Addresses: Up to 2000 ? IGMP Multicast Groups (Layer 2): Up to 256 ? IGMP Groups/Multicast Routes (Layer 3): Up to 1000 ? Unicast Routes (Layer 3): Up to 3000 #### Expansion and Management ? Total Expansion Slots: 6 ? Expansion Slot Type: SFP ? SFP Slots: 2 ? Layer Supported: Layer 2 ? Manageable: Yes #### Power Specifications ? Power Source: Power Supply #### Features and Capabilities ? Access Control List (ACL) Support ? Broadcast Storm Control ? DHCP Snooping ? Dynamic ARP Inspection (DAI) ? IGMP Snooping ? Layer 2 Switching ? MAC Address Filtering ? Multicast Storm Control ? Quality of Service (QoS) ? Spanning Tree Protocol (STP) Support ? Unicast Storm Control ? VLAN Support #### Remote Management Protocols ? HTTP, HTTPS ? RMON 1, RMON 2 ? SNMP 1, SNMP 2c, SNMP 3 ? SSH-2, Telnet ### Operating Environment ? Operating Temperature: -40?C to +75?C -40?C to +70?C (Vented Enclosure ? 40 LFM Air Flow) -40?C to +60?C (Sealed Enclosure ? 0 LFM Air Flow) -24?C to +75?C (Fan or Blower equipped Enclosure ? 200 LFM Air Flow) -40?C to +85?C (IEC 60068-2-2 Environmental Type Testing ? 16 hours) ? -40?C to +75?C ? -40?C to +70?C (Vented Enclosure ? 40 LFM Air Flow) ? -40?C to +60?C (Sealed Enclosure ? 0 LFM Air Flow) ? -24?C to +75?C (Fan or Blower equipped Enclosure ? 200 LFM Air Flow) ? -40?C to +85?C (IEC 60068-2-2 Environmental Type Testing ? 16 hours) ? Storage Temperature: -40?C to +85?C ? Operating Relative Humidity: 10 to 95% (non-condensing) ? Operating Altitude: Up to 13,000 ft (3963 m) ? Storage Altitude: Up to 15,000 ft (4573 m) #### Miscellaneous Features ? Two dual-purpose uplinks: Each port includes one 10/100/1000 Ethernet port and one SFP-based Gigabit Ethernet port (only one port is active at a time) ### Compliance Standards ? AS/NZS 3548 ? BSMI CNS 13438 Class A ? CB ? CISPR 22, CISPR 24 ? CSA C22.2 No. 60950-1 ? cUL ? EN 50081-2, EN 50082-2 ? EN55022, EN55024 ? FCC Part 15 A ? IEC 60950, IEC 60950-1 ? IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5 ? MIC ? NOM ? UL, UL 508, UL 60950-1 ? VCCI Class A ITE ### Robust and Reliable One of the key benefits of the Industrial 3000 series is its robustness and reliability. These switches are built to withstand harsh conditions and can operate in extreme temperatures, making them suitable for use in environments where other switches may fail. Additionally, the Industrial 3000 series is designed with industrial-grade components that provide enhanced durability and longevity. This ensures that the switches can withstand the rigors of industrial environments, reducing the risk of downtime and improving overall system reliability. ### Advanced Security Features Industrial networks often require a higher level of security due to the sensitive nature of the data being transmitted. The Industrial 3000 series addresses this need by offering advanced security features that help protect against unauthorized access, data breaches, and cyber threats. These switches support features such as port security, which allows administrators to control access to specific ports on the switch. This helps prevent unauthorized devices from connecting to the network, protecting against potential security breaches. In addition, the Industrial 3000 series supports advanced security protocols such as Secure Shell (SSH) and Secure Sockets Layer (SSL), which encrypt network traffic to ensure data confidentiality. This is particularly important in industrial environments where sensitive information may be transmitted over the network. ### Easy Deployment and Management The Industrial 3000 series is designed with ease of deployment and management in mind. These switches offer features that simplify the setup and configuration process, reducing the time and effort required to get the network up and running. For example, the switches in this series support Cisco’s Smart Install feature, which allows for zero-touch deployment. This means that the switches can automatically detect and configure themselves when connected to the network, eliminating the need for manual intervention. In addition, the Industrial 3000 series is compatible with Cisco’s network management software, which provides a centralized interface for monitoring and managing multiple switches. This simplifies network administration and allows for efficient troubleshooting, reducing downtime and improving overall network performance. ## Ports: 8 The Cisco IE-3000-8TC Ethernet Switch Module features 8 ports, making it suitable for small to medium-sized industrial networks. These ports provide connectivity for devices such as computers, servers, and industrial equipment. ### Flexible Connectivity Options The 8 ports on the Cisco IE-3000-8TC Switch Module offer a range of connectivity options to meet various networking needs. Each port supports both Fast Ethernet and Gigabit Ethernet, providing flexibility in terms of speed and bandwidth requirements. This allows for seamless integration with existing network infrastructure, ensuring compatibility with different devices and equipment. Whether you need to connect legacy devices that only support Fast Ethernet or high-performance equipment that requires Gigabit Ethernet, the Cisco IE-3000-8TC Switch Module has you covered. ### Expandability and Scalability The 8 ports on this switch module provide room for future expansion and scalability. As your network grows or your connectivity needs change, you can easily add additional devices or upgrade to higher-speed equipment without having to replace the entire switch. This scalability is particularly important in industrial environments where requirements can change rapidly. The ability to easily expand the network without disruption or additional investment in infrastructure allows for a more efficient and cost-effective solution. ### Power over Ethernet (PoE) Support The Cisco IE-3000-8TC Switch Module also supports Power over Ethernet (PoE), which enables the switch to provide power to connected devices such as IP phones, wireless access points, and security cameras. This eliminates the need for separate power supplies for these devices, simplifying installation and reducing clutter. It also allows for flexible device placement, as devices can be located in areas where power outlets are not readily available. ## Layer: 2 The Cisco IE-3000-8TC Ethernet Switch Module operates at Layer 2 of the OSI model, providing essential networking functions for industrial applications. Layer 2 switches are commonly used in local area networks (LANs) to connect devices within a single network segment. ### Efficient Traffic Handling Layer 2 switches are known for their efficient handling of network traffic. They use MAC addresses to forward data packets between devices, ensuring that data reaches its intended destination quickly and accurately. By operating at Layer 2, the Cisco IE-3000-8TC Switch Module can efficiently handle large amounts of data without introducing unnecessary latency or bottlenecks. This is particularly important in industrial environments where real-time data must be transmitted and processed in a timely manner. ### Simple Network Design Layer 2 switches offer a simple and straightforward network design. They allow for the creation of flat networks, where all devices are connected to a single switch without the need for complex routing configurations. This simplicity makes Layer 2 switches easy to deploy and manage, especially in industrial environments where network resources may be limited. It also reduces the risk of network errors and simplifies troubleshooting, improving overall network reliability. ### Enhanced Network Security Layer 2 switches provide enhanced network security by isolating traffic between devices connected to different ports. This helps prevent unauthorized access and contains potential security breaches, ensuring the integrity and confidentiality of sensitive data. The Cisco IE-3000-8TC Switch Module supports features such as VLANs (Virtual Local Area Networks), which allow for logical segmentation of the network. This means that devices in different VLANs cannot communicate with each other, adding an additional layer of security to the network. #### Conclusion The Cisco IE-3000-8TC Ethernet Switch Module is a versatile and reliable switch that offers a wide range of features and capabilities. Its inclusion in the Industrial 3000 series ensures its suitability for demanding industrial environments, while its 8 ports and Layer 2 functionality provide flexible connectivity options and efficient traffic handling. Whether you need to connect devices in a small factory or monitor critical infrastructure in a large facility, the Cisco IE-3000-8TC Switch Module is an excellent choice.
