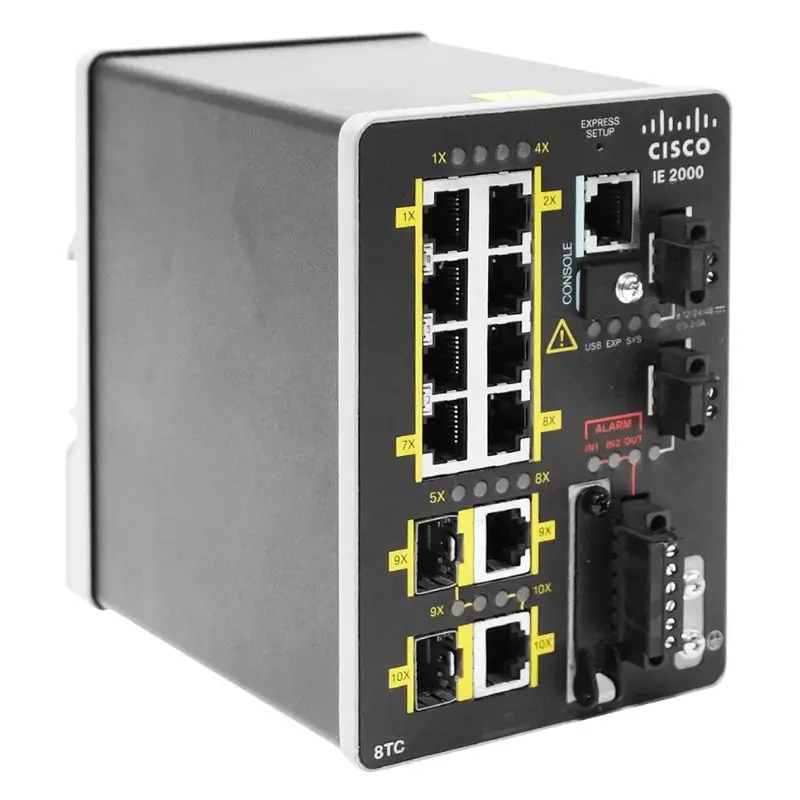

## Ports The Cisco IE-2000-8TC-G-B Ethernet Switch is equipped with 10 ports, making it a valuable asset for users in need of a high-performance networking solution. These ports enable seamless connectivity and efficient data transmission, ensuring that businesses can operate at optimal levels. Product Specifications ? Brand: Cisco ? Model Number: IE-2000-8TC-G-B ? Series: IE-2000 ? Type: Ethernet Switch ### Port Configuration ? Total Ports: 10 ? Stacking Port: None ? Port Types: 8 x 10/100, 2 x Combo Gigabit SFP ? PoE Ports: No ? Manageability: Yes ## Performance and Media ### Media and Network Technologies ? Media Type: Twisted Pair ? Ethernet Standards: Gigabit Ethernet ? Network Standards: 10/100Base-TX, 10/100/1000Base-T ? Layer Support: Layer 2 ### Expansion Options ? Expansion Slot Type: SFP ? Number of Expansion Slots: 2 ## Power and Protocols ### Power Specifications ? Input Voltage: 60 V DC ? Power Source: Power Supply ? Redundant Power Supply: Supported ### Protocol Support ? Routing Protocols: IGMP, Static IPv4 Routing ? Remote Management: SNMP v3, HTTPS, SSH ## Features and Memory ### Key Features ? Rapid Spanning Tree Protocol (RSTP) ? Quality of Service (QoS) ? Port Security ? Remote Switch Port Analyzer (RSPAN) ### Memory Specifications ? RAM: 256 MB ? Flash Memory: 64 MB ## Compliance and Environmental Standards ### Environmental Certifications ? Environmentally Friendly: Yes ? Environmental Certification: RoHS ? Rack Mounting Kit: Optional ### Compliance Standards ? C-Tick, CISPR 22 Class A, CISPR 24 ? IEC 61000-4-11, VCCI Class A ITE, EN55022 Class A ? EN 61000-6-1, EN 61000-4-4, EN 61000-4-2 ? EN 61000-4-3, EN 61000-4-6, ICES-003 Class A ? EN 61000-4-5, RoHS, FCC CFR47 Part 15 ? EN 61000-4-8, UL 60950-1, IEC 60950-1 ? EN 60950-1, EN 61000-6-4, IEC 60068-2-30 ? KCC, IEC 60068-2-27, IEC 60068-2-6 ? UL 508, FCC Part 15 A, IEC 60529 IP30 ? CISPR 11, CSA 22.2 No. 142 ? EN 61131-2, EN 61326-1, EN 61000-4-9 ? EN 61000-4-29, IEC 60068-2-14 ### Environmental Parameters ? Operating Humidity: 5 ? 95% (non-condensing) ? Minimum Storage Temperature: -40 ?F ? Maximum Storage Temperature: 185 ?F ? MTBF: 374,052 hours ### Increased Connectivity With 10 ports, this Ethernet switch offers an abundance of connectivity options. Users can connect multiple devices simultaneously, including computers, printers, servers, and other network-enabled devices. This eliminates the need for additional switches or hubs, simplifying the network infrastructure and reducing clutter. #### Enhanced Network Performance The Cisco IE-2000-8TC-G-B’s 10 ports are designed to deliver exceptional network performance. Each port supports high-speed data transmission, allowing for fast and reliable communication between connected devices. This ensures that data-intensive tasks such as file transfers, video streaming, and online collaboration are executed seamlessly without any lag or delays. #### Flexibility in Network Design Having 10 ports provides users with greater flexibility in designing their network infrastructure. The additional ports allow for more versatile network configurations, such as creating separate VLANs (Virtual Local Area Networks) or establishing redundant connections for increased reliability. This flexibility ensures that the network can adapt to evolving business needs and scale effortlessly. ### Simplified Troubleshooting The Cisco IE-2000-8TC-G-B’s 10 ports play a crucial role in simplifying troubleshooting processes. Each port is equipped with LED indicators that provide valuable information about the status and activity of the connected devices. This enables network administrators to quickly identify any issues or bottlenecks in the network and take appropriate actions to rectify them promptly. The intuitive LED indicators eliminate the need for complex diagnostic tools and significantly reduce troubleshooting time. #### Efficient Network Monitoring The 10 ports of the Cisco IE-2000-8TC-G-B also enable efficient network monitoring. Administrators can connect monitoring devices, such as network analyzers or packet sniffers, to specific ports to capture and analyze network traffic. This allows for proactive monitoring of network performance, identification of potential security threats, and optimization of network resources. The ability to monitor specific ports provides granular visibility into the network, enhancing overall network management capabilities. ##### Improved Network Security The Cisco IE-2000-8TC-G-B’s 10 ports contribute to improved network security. By utilizing these ports effectively, administrators can implement security measures such as port-based access control, which restricts access to specific ports based on user credentials or other defined criteria. This prevents unauthorized access and helps protect sensitive data and resources from potential threats. Additionally, the use of separate VLANs created through the ports allows for the isolation of critical systems, reducing the risk of unauthorized access or attacks spreading across the network. ##### Network Expansion Possibilities The availability of 10 ports on the Cisco IE-2000-8TC-G-B Ethernet Switch opens up possibilities for network expansion. As businesses grow and their networking needs evolve, additional devices can be easily connected to the switch without requiring infrastructure upgrades. The ample number of ports ensures that the switch can accommodate new devices without compromising network performance or causing congestion. In conclusion, the 10 ports offered by the Cisco IE-2000-8TC-G-B Ethernet Switch provide numerous benefits and hold great importance for users. They facilitate increased connectivity, enhanced network performance, flexibility in network design, simplified troubleshooting, efficient network monitoring, improved network security, and possibilities for future network expansion. With these features, the switch empowers businesses to build robust and scalable networks that meet their current requirements while allowing room for growth and adaptability in the future.
