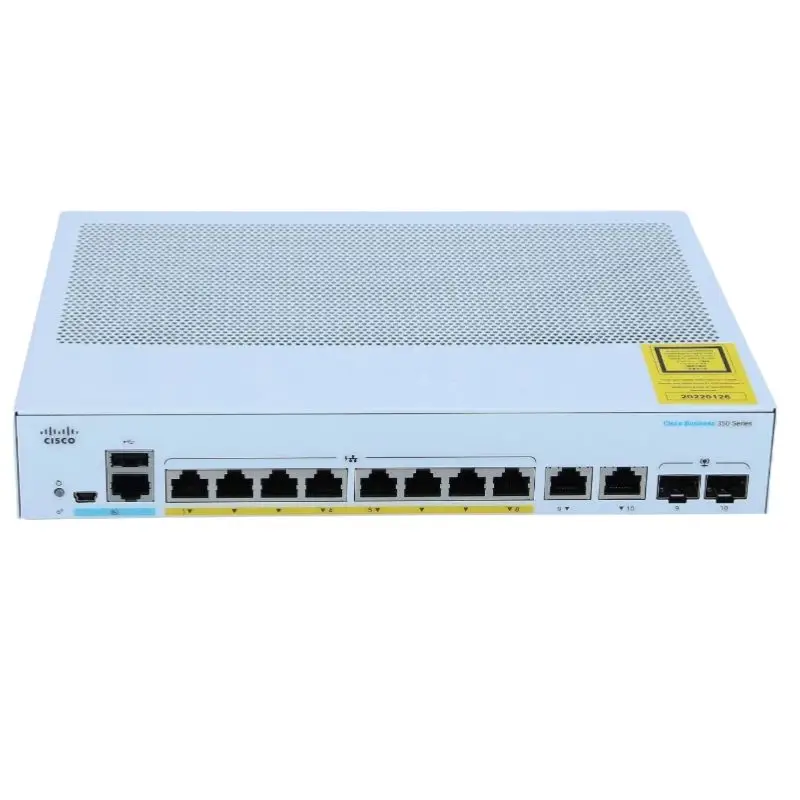

## Overview of Cisco CBS350-8P-E-2G ? Brand: Cisco ? Model Number: CBS350-8P-E-2G ? Product Series: 350 ? Type: Ethernet Switch ### Port and Slot Details ? Total Ports: 8 ? Uplink Capability: Yes ? Modular Design: Yes ? Ports/Expansion Slots: ? 2 x Gigabit Ethernet TP/SFP Combo ? 8 x Gigabit Ethernet PoE+ ? Supported Media Types: Optical Fiber, Twisted Pair ? Ethernet Technology: Gigabit Ethernet ? Network Technology: 1000Base-X, 1000Base-T #### Expansion and Slot Information ? Total Expansion Slots: 2 ? Slot Type: SFP (mini-GBIC) ? Shared SFP Slot: Yes ? Number of SFP Slots: 2 ### Network and Communication Capabilities ? Supported Layer: 2 ### Management and Protocols ? Manageable: Yes ### Power Specifications ? PoE (RJ-45) Ports: Yes ? PoE Budget: 67 W ? Power Source Options: AC Adapter, PoE+ ? Power Consumption: 14.31 W ### Performance Metrics ? Switching Capacity: 20 Gbps ? Forwarding Performance (64-byte Packet Size): 14.88 Mpps ### Capacity Details ? Rpvst+ Instances: 126 ? Mstp Instances: 8 ? Supported VLANs: 4094 ? ACL Rules: 1024 ? Buffer Size: 1.5 MB ? MAC Address Table Size: 16k Entries ? Jumbo Frame Support: 2 KB ### Routing Protocols ? IGMPv2, IGMP, IGMPv3 ? Static IPv4 and IPv6 Routing ? Policy-based Routing (PBR) ? MLDv2, MLD ? CIDR, MSTP, RSTP, STP ### Remote Management Protocols ? SNMP 1, SNMP 2c, SNMP 3 ? RMON, Telnet ? HTTP, HTTPS, TFTP, SSH, SSH-2 ? CLI, SCP, ICMP, DHCP ? RSTP, TACACS+, RADIUS ## Ports The Cisco CBS350-8P-E-2G Rack-Mountable switch is equipped with a total of 8 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and efficient network solution. These ports are designed to handle various types of network traffic, allowing users to connect multiple devices and ensure seamless data transmission. ### Increased Connectivity With 8 ports, the Cisco CBS350-8P-E-2G provides users with increased connectivity options. Whether you need to connect computers, printers, servers, or other network devices, this switch has you covered. The availability of multiple ports ensures that you can easily expand your network infrastructure without sacrificing performance. #### Flexibility The flexibility offered by the 8 ports allows for easy integration into existing network setups. You can connect different types of devices and take advantage of the switch’s advanced features to optimize your network performance. This flexibility is particularly useful in scenarios where you need to adapt your network to changing business requirements. ##### Enhanced Productivity The 8 ports on the Cisco CBS350-8P-E-2G enable users to create efficient and productive work environments. With more ports available, you can eliminate bottlenecks and ensure that each device has a dedicated connection, resulting in faster data transfer speeds and reduced latency. This is especially crucial in environments where employees heavily rely on network-dependent applications and services. ## Management The Cisco CBS350-8P-E-2G Rack-Mountable switch offers advanced management capabilities, making it an excellent choice for businesses that require a high level of control and monitoring over their network infrastructure. With its “Managed” feature, this switch provides users with enhanced visibility and control, ensuring optimal performance and security. ### Centralized Network Control The “Managed” feature allows for centralized control of the entire network. With this capability, network administrators can easily configure and manage multiple switches from a single interface. This eliminates the need to individually access and configure each switch, saving time and effort. Centralized control also enables quick troubleshooting and network optimization, leading to improved overall network performance. #### Advanced Monitoring The Cisco CBS350-8P-E-2G’s management feature includes advanced monitoring capabilities, giving network administrators real-time insights into network performance, traffic patterns, and device status. This level of visibility enables proactive network maintenance, allowing administrators to identify and address potential issues before they impact users. With detailed monitoring data at their fingertips, administrators can make informed decisions to optimize network performance. ##### Enhanced Security The “Managed” feature of the Cisco CBS350-8P-E-2G switch plays a crucial role in enhancing network security. Administrators can implement robust security measures such as access control lists (ACLs), VLANs, and port security to protect sensitive data and prevent unauthorized access. Additionally, the switch supports advanced security protocols like Secure Shell (SSH) and Secure Sockets Layer (SSL) encryption, ensuring secure remote management and preventing unauthorized configuration changes. ## PoE+ The Cisco CBS350-8P-E-2G Rack-Mountable switch features Power over Ethernet Plus (PoE+), enabling both data and power transmission over a single Ethernet cable. This feature offers numerous benefits for businesses that rely on power-hungry devices and require a flexible and efficient power delivery solution. ### Cost Efficiency By eliminating the need for separate power cables and outlets for each connected device, PoE+ significantly reduces installation and maintenance costs. Businesses can avoid the expenses associated with electrical wiring, power adapters, and additional power outlets, resulting in cost savings. Additionally, PoE+ eliminates the risk of power outages for connected devices, ensuring uninterrupted operation. #### Flexibility and Scalability With PoE+, the Cisco CBS350-8P-E-2G switch provides flexibility and scalability for network deployments. Users can easily add or relocate devices without the constraints of power availability, as the switch can provide power directly through the Ethernet cables. This eliminates the need for dedicated power sources in hard-to-reach areas or locations where power outlets are limited, offering greater flexibility in network design and expansion. ##### Device Compatibility PoE+ compatibility ensures that a wide range of network devices can be powered and connected using a single cable. This includes devices such as IP phones, wireless access points, IP cameras, and even small-scale servers. With PoE+, businesses can efficiently deploy these devices without worrying about power supply limitations, simplifying installation and reducing cable clutter. ## SFP The Cisco CBS350-8P-E-2G Rack-Mountable switch is equipped with 1 Small Form-Factor Pluggable (SFP) port. This feature provides users with additional flexibility and connectivity options for their network infrastructure. ### Expanded Network Reach The SFP port on the Cisco CBS350-8P-E-2G allows for the use of fiber optic cables, extending the reach of your network infrastructure. Fiber optic technology offers greater transmission distances compared to traditional copper cables, enabling connections over longer distances without sacrificing performance. This is particularly advantageous for businesses with multiple buildings or large office spaces that require seamless connectivity across different areas. #### High Bandwidth Capability The SFP port supports high-speed data transmission, making it an ideal choice for bandwidth-intensive applications. Whether you need to transmit large files, stream high-definition video content, or handle data-intensive tasks, the SFP port provides the necessary bandwidth to ensure smooth and reliable performance. This capability is especially crucial for industries such as media, entertainment, and healthcare, where high bandwidth is essential for critical operations. ##### Interoperability The SFP port on the Cisco CBS350-8P-E-2G switch offers interoperability with various SFP modules, allowing users to choose the most suitable optics for their specific network requirements. This flexibility ensures compatibility with different network architectures and enables seamless integration with existing infrastructure. Users can select the appropriate SFP module based on factors such as transmission distance, media type, and data rate, ensuring optimal performance and compatibility.
