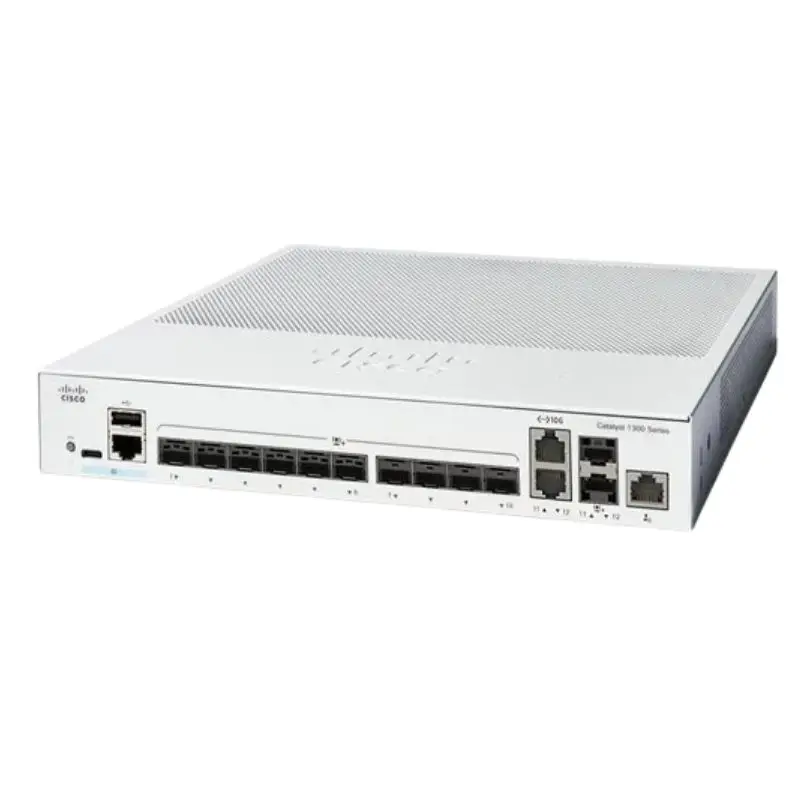

## Product Overview of Cisco C1300-12XS The 1300 12-Port SFP+ 2X10GE is a high-performance Layer 3 Switch designed to handle demanding network environments. Offering advanced management features, it is ideal for organizations requiring efficient and reliable connectivity. ### Specifications ? Product Type: Layer 3 Switch ? Part Number: C1300-12XS ? Manageable: Yes ? Ethernet Technology: 10 Gigabit Ethernet ? Product Family: Catalyst 1300 ? Media Type Supported: Optical Fiber, Twisted Pair ? Total Number of Network Ports: 2 ? Total Number of Expansion Slots: 12 ? Expansion Slot Type: SFP+ ? Form Factor: Rack-mountable ? Power Consumption: 34.10 W ? Power Source: Power Adapter ? Layer Supported: 3 ? Compatible Rack Unit: 1U ? Maximum Data Transfer Rate: 1.25 GB/s ? Network (RJ-45): Yes ? Number of SFP+ Slots: 12 ? Uplink Port: Yes ? Port / Expansion Slot Details: 12 x 10 Gigabit Ethernet SFP+ Expansion Slot, 2 x 10BASE-T Gigabit Ethernet Network Port ### Networking Standards ? IEEE 802.3 ? IEEE 802.3u ? IEEE 802.3ab ? IEEE 802.3ad ? IEEE 802.3z ? IEEE 802.3ae ? IEEE 802.3an ? IEEE 802.3x ? IEEE 802.1D ? IEEE 802.1Q ? IEEE 802.1p ? IEEE 802.1w ? IEEE 802.1x ? IEEE 802.3af ? IEEE 802.3at ? IEEE 802.1ab ? IEEE 802.3az ### Physical Specifications ? Height: 1.7″ ? Width: 10.7″ ? Depth: 10.6″ ? Product Series: Catalyst 1300 ### Features ? Fanless Operation ? High Availability Supported ? Frequency: 50 Hz, 60 Hz ? MTBF: 2165105 Hours ### Power and Input Specifications ? Input Voltage: 120 V AC, 230 V AC ## Overview of Cisco C1300-12XS Catalyst 1300 Switch The Cisco C1300-12XS Catalyst 1300 is a high-performance, versatile networking solution designed to meet the demands of modern enterprise environments. This shared switch features a robust architecture optimized for scalability, reliability, and efficiency. With its advanced capabilities, the Cisco C1300-12XS is ideal for managing complex networking tasks and supporting a wide range of applications, from high-speed data transfers to cloud-based services. ### Key Features and Specifications ? 12 SFP+ ports for high-speed, flexible connectivity ? 2 x 10GE shared uplinks for seamless aggregation ? High-capacity hardware design for reliable data handling ? Layer 3 switching support for enhanced routing capabilities ? Energy-efficient design to minimize operational costs #### Connectivity Options The Cisco C1300-12XS offers a variety of connectivity options, ensuring seamless integration into existing networks. The SFP+ ports provide 10GbE (Gigabit Ethernet) connectivity, making it easy to handle bandwidth-intensive applications. These ports support both short-range and long-range fiber optic connections, offering flexibility for different deployment scenarios. ##### High-Speed Data Transfers with 10GE Uplinks In addition to the 12 SFP+ ports, the switch features 2 shared 10GE uplinks. These uplinks are crucial for connecting to higher-capacity backbone networks or aggregating multiple switches for optimized performance. With 10GE uplinks, data transfer speeds are significantly enhanced, reducing latency and improving overall network efficiency. ### Enhanced Security Features Security is a top priority for the Cisco C1300-12XS Catalyst 1300. This switch incorporates advanced security measures, such as VLAN (Virtual Local Area Network) support, access control lists (ACLs), and 802.1X authentication. These features ensure that sensitive data is protected against unauthorized access, while also enabling secure remote management and monitoring. #### Layer 3 Switching for Robust Routing The Cisco C1300-12XS supports Layer 3 switching capabilities, making it an ideal choice for dynamic and complex network routing environments. It offers advanced routing protocols, including OSPF, EIGRP, and BGP, ensuring optimal data forwarding and network scalability. ##### Optimized for High-Density Environments Designed to handle high-density networking, the Cisco C1300-12XS excels in environments where multiple devices require reliable connectivity. Its high-capacity ports and shared uplinks provide the necessary resources to manage large-scale deployments efficiently. ### Energy Efficiency and Thermal Management Energy efficiency is a key factor in the design of the Cisco C1300-12XS. The switch utilizes advanced power management features to reduce energy consumption without compromising performance. Additionally, its robust thermal management system ensures optimal operating temperatures, even during peak usage periods. #### Compact Design for Space Optimization Incorporating a compact design, the Cisco C1300-12XS allows for flexible deployment in diverse environments. Its size and form factor make it suitable for various settings, including data centers, branch offices, and remote sites, ensuring ease of installation and minimal space usage. ### Management and Monitoring Tools The switch is equipped with a range of management and monitoring tools, enabling network administrators to maintain optimal performance. Features such as Cisco DNA Center integration, SNMP (Simple Network Management Protocol), and web-based GUI ensure seamless control and visibility across the network. #### Redundant Power Supply for Maximum Uptime For mission-critical environments, the Cisco C1300-12XS supports redundant power supplies. This feature ensures that the switch continues to operate seamlessly even in the event of a power failure, providing a high level of reliability and minimal downtime. ##### Advanced Quality of Service (QoS) Advanced QoS capabilities allow the switch to prioritize traffic flows based on various criteria, such as application type, user role, or device classification. This ensures that critical applications receive the bandwidth they need, enhancing overall network performance.
