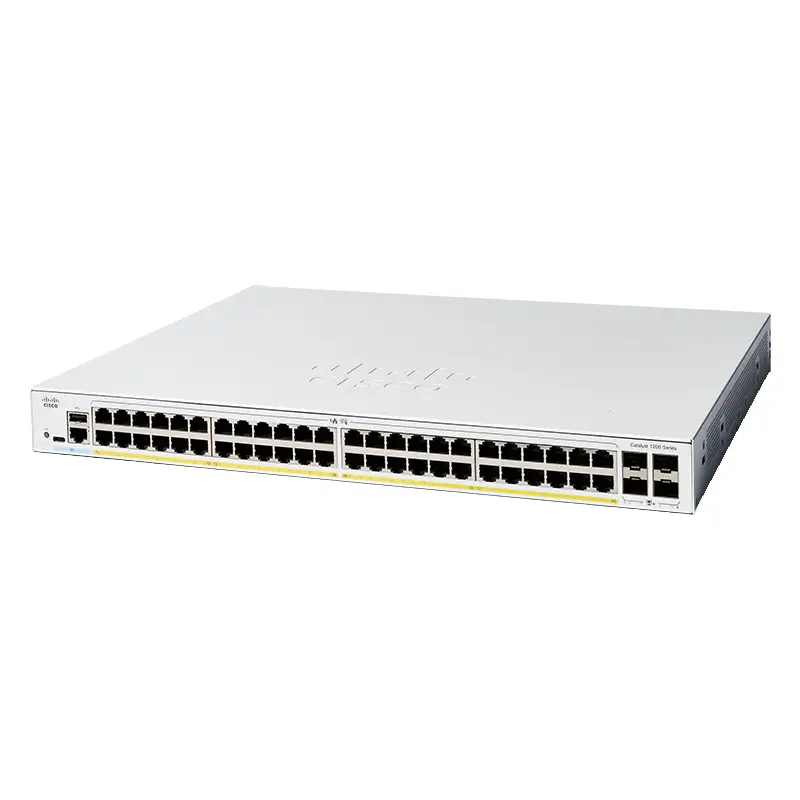

Key Specifications of the Switch C1200-48P-4G ### Device Overview ? Type: Network Switch – 48 Ports – Layer 3 – Smart ? Mounting Style: Rack-mountable ? Network Type: Gigabit Ethernet ### Port and Power Details ? Ports: 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP ? Power Over Ethernet (PoE): PoE+ ? PoE Budget: 375 Watts ### Performance Metrics ? Forwarding Rate: 77.38 Mpps (64-byte packets) ? Switching Capacity: 104 Gbps ### Capacity and Configuration ? MSTP Instances: 8 ? PVST+ Instances: 126 ? RPVST+ Instances: 126 ? Link Aggregation Groups: 4 ? Link Aggregation Ports: 8 ? Active VLANs: 255 ? IGMP Multicast Groups: 255 ? IPv4 Routes (Static): 32 ? IPv4 Interfaces: 16 ? ACL Rules: 512 ? Priority Queues: 8 ? Packet Buffer Size: 3 MB ### Additional Features ? MAC Address Table Size: 8000 Entries ? Jumbo Frame Support: 9000 Bytes ? Routing Protocols: IGMPv2, IGMP, Static IP Routing, IGMPv3, MLdv2, MLd, CIDR, MSTP, RSTP, STP, Bonjour ? Remote Management: SNMP, RMON, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog ? Encryption: SSL ? Authentication: RADIUS ? Special Features: BOOTP Support, VLAN Support, IGMP Snooping, DOS Attack Prevention, Port Mirroring, DiffServ Support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP Support, DHCP Server, Reset Button, Cable Diagnostics, DHCP Relay, Port Security, SNMP Trap, DHCP Client, Port Grouping, Storm Control, Link Aggregation, IGMP Querier, VLAN Mirroring, DNS Client, 1 Fan, Voice VLAN, VLAN Management, LLDP-MED, Guest VLAN, Ingress Rate Limiting, STP Loop Guard, Energy-efficient Ethernet (EEE), TCP/UDP Proxy, DSCP-based CoS, Loopback Detection, Port-based VLAN, Telnet Server, Telnet Client, Unknown Storm Control, IPv4 and IPv6 Dual Stack, Zero-touch Deployment, Cable Length Detection, Trustworthy Systems, Layer 3 Routing, Remote Firmware Upgrade, ACL Support, Eco-friendly Button, Auto Surveillance VLAN, TCP Congestion, Chip Guard, Boot Integrity, Time-based Port Operation, Tag-based VLANs, WRR Queuing, MSTP Support, TFTP Support, QoS, PVST+, LACP, CoS, SP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DOS Protection, WRR, HOL Blocking Prevention, LAG, CDP, VSDP, RPVST+, DAD, LLDP, EQS, Path MTU Discovery ### Compliance and Standards ? Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1d, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az ### Hardware Specifications ? Processor: ARM Cortex, 1.4 GHz ? RAM: 1 GB DDR4 SDRAM ? Flash Memory: 512 MB ? Status Indicators: System, PoE, Link/Activity/Speed ### Expansion and Connectivity ? Interfaces: 48 x 10/100/1000 Base-T (PoE+) RJ-45 4 x 10GBASE-X SFP 1 x Console RJ-45 1 x USB-C Console ? 48 x 10/100/1000 Base-T (PoE+) RJ-45 ? 4 x 10GBASE-X SFP ? 1 x Console RJ-45 ? 1 x USB-C Console ### Power Requirements ? Power Device: Internal Power Supply ? Voltage Required: AC 100-240 V (50 – 60 Hz) ## Ports The Cisco Catalyst C1200 Network Switch is equipped with a remarkable 48 ports, making it an ideal choice for businesses and organizations that require a high-performing and reliable network infrastructure. These ports offer numerous benefits to users, ranging from increased connectivity options to enhanced network performance and scalability. ### Increased Connectivity Options With 48 ports, the Cisco Catalyst C1200 allows users to connect multiple devices and expand their network effortlessly. This is particularly beneficial for businesses that have a large number of employees or require extensive network coverage. Each port acts as a connection point for devices such as computers, printers, servers, and IP phones, ensuring seamless communication between different parts of the organization. The availability of multiple ports also eliminates the need for additional network switches or hubs, reducing both cost and complexity. With the Cisco Catalyst C1200, users can easily connect all their devices directly to the switch, simplifying network management and minimizing potential points of failure. ### Enhanced Network Performance The 48 ports on the Cisco Catalyst C1200 Network Switch are designed to deliver exceptional network performance. Each port supports fast Ethernet and gigabit Ethernet speeds, allowing for high-speed data transfer and efficient communication between devices. This superior performance is particularly important in scenarios where large amounts of data need to be transmitted quickly. For example, in businesses that handle multimedia content or engage in data-intensive activities such as video conferencing or cloud computing, having 48 high-performance ports ensures a smooth and uninterrupted workflow. Furthermore, the Cisco Catalyst C1200 features advanced quality-of-service (QoS) capabilities, which prioritize network traffic based on predefined rules. This ensures that critical applications receive sufficient bandwidth and are not affected by less important traffic. By efficiently managing network resources, the switch optimizes overall network performance and minimizes latency issues. ### Scalability Scalability is a crucial consideration for businesses and organizations that anticipate growth or have fluctuating network demands. The Cisco Catalyst C1200 Network Switch offers excellent scalability options, thanks to its 48 ports. As the number of devices and users increases, additional ports can be easily utilized to accommodate the growing network requirements. This eliminates the need for a complete network overhaul and allows for a smooth and cost-effective transition. With the Cisco Catalyst C1200, businesses can confidently expand their network infrastructure without compromising performance or reliability. #### Flexibility in Network Design The 48 ports on the Cisco Catalyst C1200 provide users with tremendous flexibility in designing their network. Different devices can be connected to specific ports based on their requirements and priority levels. For example, critical devices such as servers or network storage can be connected to dedicated high-speed ports, ensuring fast and efficient data transfer. User devices, such as computers or IP phones, can be connected to other ports without impacting the performance of critical systems. This flexibility allows network administrators to optimize the network design to meet specific business needs, ensuring that resources are allocated appropriately and network bottlenecks are minimized. #### Reliability and Redundancy The Cisco Catalyst C1200 Network Switch is known for its reliability and redundancy features. With 48 ports, users can create redundant connections within their network infrastructure, ensuring uninterrupted connectivity even in the event of a port failure. By connecting critical devices through redundant paths, the switch automatically reroutes traffic in case of a link failure, minimizing downtime and providing continuous network availability. This redundancy is particularly important for businesses that rely heavily on their network infrastructure to deliver services or maintain operations. #### Streamlined Network Management Managing a large network with numerous devices can be a complex task. However, with 48 ports, the Cisco Catalyst C1200 simplifies network management by providing a centralized and streamlined solution. Administrators can monitor and configure each port individually, ensuring optimal performance and security. The switch also supports various management protocols, allowing for seamless integration into existing network management systems. ##### Conclusion In conclusion, the 48 ports of the Cisco Catalyst C1200 Network Switch offer numerous benefits to users. They provide increased connectivity options, enhanced network performance, and scalability. Additionally, the flexibility in network design, reliability and redundancy features, and streamlined network management capabilities make it an ideal choice for businesses and organizations of all sizes. With its impressive port count, the Cisco Catalyst C1200 ensures that users have a reliable and high-performing network infrastructure to support their growing needs. ## SFP Ports The Cisco Catalyst C1200 Network Switch comes equipped with 4 SFP (Small Form-Factor Pluggable) ports, which further enhance its connectivity capabilities and provide users with additional networking options. These SFP ports offer numerous benefits to users, including increased bandwidth, longer transmission distances, and flexibility in network design. ### Increased Bandwidth The 4 SFP ports on the Cisco Catalyst C1200 Network Switch enable users to connect fiber optic cables directly to the switch. This allows for significantly higher bandwidth compared to traditional copper Ethernet connections. Fiber optic cables can support much higher data transfer rates over longer distances without experiencing signal degradation. By utilizing SFP ports and fiber optic technology, users can take advantage of increased bandwidth to support bandwidth-intensive applications or transmit large amounts of data quickly and reliably. ### Longer Transmission Distances SFP ports on the Cisco Catalyst C1200 Network Switch allow for longer transmission distances compared to copper Ethernet connections. Fiber optic cables can transmit data over much greater distances without experiencing significant signal loss or degradation. This is particularly beneficial in scenarios where devices are located far apart or in different buildings. With the Cisco Catalyst C1200, users can easily connect devices over long distances without the need for additional repeaters or signal boosters. #### Improved Network Reliability The longer transmission distances offered by SFP ports contribute to improved network reliability. Fiber optic cables are immune to electromagnetic interference, crosstalk, and other common issues that can affect copper Ethernet connections. This enhanced reliability is especially crucial in environments with high levels of electromagnetic interference, such as industrial settings or areas with a dense concentration of electronic devices. By utilizing SFP ports and fiber optic cables, users can ensure a stable and uninterrupted network connection, minimizing potential downtime and data loss. #### Flexibility in Network Design The 4 SFP ports on the Cisco Catalyst C1200 Network Switch provide users with tremendous flexibility in designing their network infrastructure. These ports allow for the integration of various networking technologies, including Ethernet, Fast Ethernet, Gigabit Ethernet, and even fiber channel. Users can connect different devices with different networking requirements to the SFP ports, enabling seamless communication between them. This flexibility allows for the creation of diverse network topologies and the integration of various network components. #### Easy Upgrades and Future-Proofing The presence of SFP ports on the Cisco Catalyst C1200 Network Switch ensures easy upgrades and future-proofing of the network infrastructure. As technology evolves and higher bandwidth requirements emerge, users can simply replace the existing SFP modules with newer ones that support higher data transfer rates. This eliminates the need for replacing the entire switch or investing in additional equipment. With SFP ports, users can adapt their network to changing requirements without significant costs or disruptions. ##### Conclusion In conclusion, the 4 SFP ports on the Cisco Catalyst C1200 Network Switch provide users with increased bandwidth, longer transmission distances, and flexibility in network design. These ports enhance network performance, increase reliability, and allow for easy upgrades and future-proofing. With the Cisco Catalyst C1200, users can create a versatile and high-performing network infrastructure that meets their current needs and can adapt to future requirements.
